Reliable Connectivity for Extreme Productivity
All-In-One Docking Solution
Dock with your computer seamlessly using the one cable solution to charge your laptop with up to 140W power, 2.5G Ethernet, all making it convenient for your digital workspace.
Extra Screen Real Estate
Boost your multitasking capability by daisy chaining up to 4 monitors with the 4-sided ultra-thin bezels to create immersive working environment.
Seamless Connectivity
Improve productivity for all your workflows by connecting all compatible devices with the monitor’s built-in USB hub.
Convenient Modular Support
Connect to the ThinkVision Modular MC60 Webcam and MS30 Soundbar via the top-mounted USB-A port and level up your audio and camera quality. Eliminate cable-clutter from your desk with the monitor’s support for mounting the Lenovo Tiny PC
Technical Details
Technical Details
| Specification | Details |
|---|---|
| Display Size | 23.8″ |
| View Area | 526.8×296.4 mm |
| Panel | In-Plane Switching |
| Backlight | WLED |
| Aspect Ratio | 16:9 |
| Resolution | 2560×1440 |
| Pixel Pitch | 0.2058×0.2058 mm |
| Dot / Pixel Per Inch | 123 dpi |
| View Angle (H / V) | 178° / 178° |
| Response Time | 4ms GtG (Extreme mode) / 6ms GtG (Typical mode) |
| Color Support | 16.7 Million |
| Refresh Rate | 48Hz – 120Hz |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1500:1 |
| Color Gamut | 99% sRGB, 99% BT.709 |
| Screen Surface Treatment | Anti-glare |
| Curvature | Flat Panel |
| Camera | Modular Camera Support |
| Microphone | None |
| Speakers | Modular Speaker Support |
| Power Consumption (Typical / Maximum) | 16.5W / 210W |
| Power Adapter | Integrated |

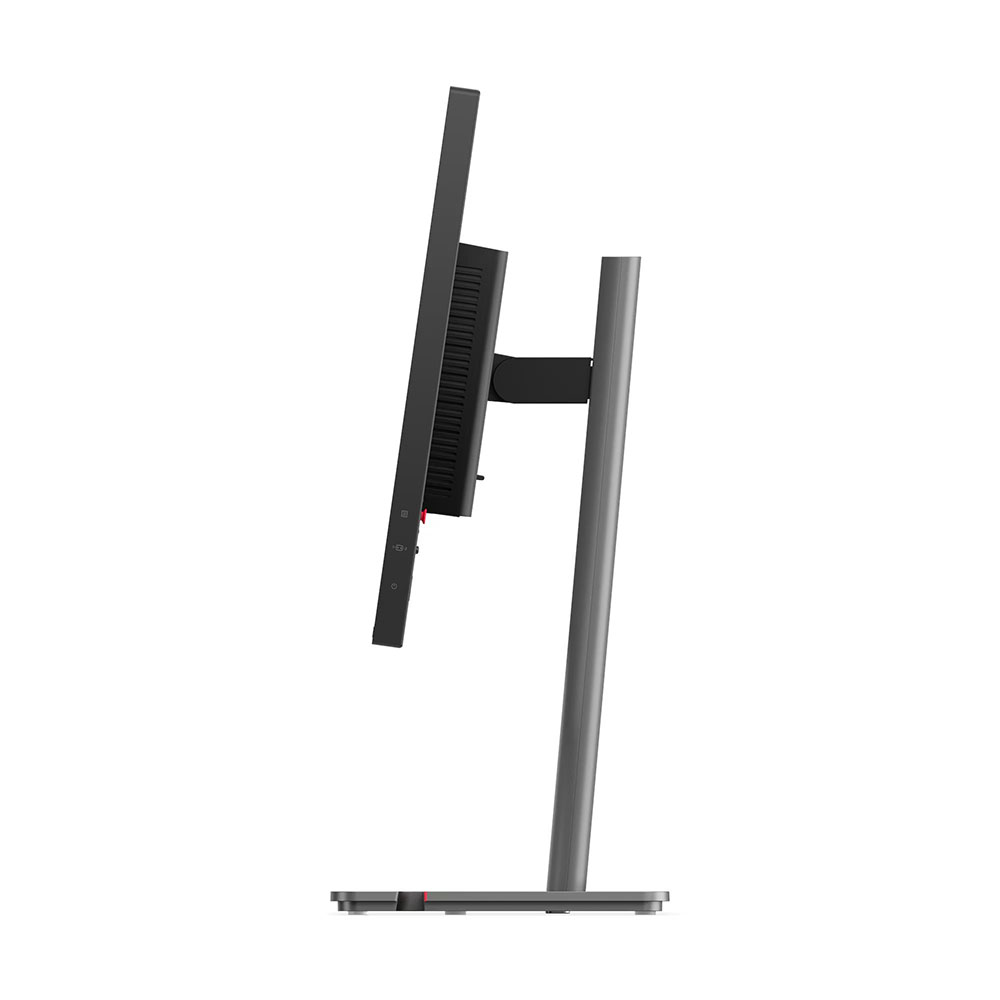

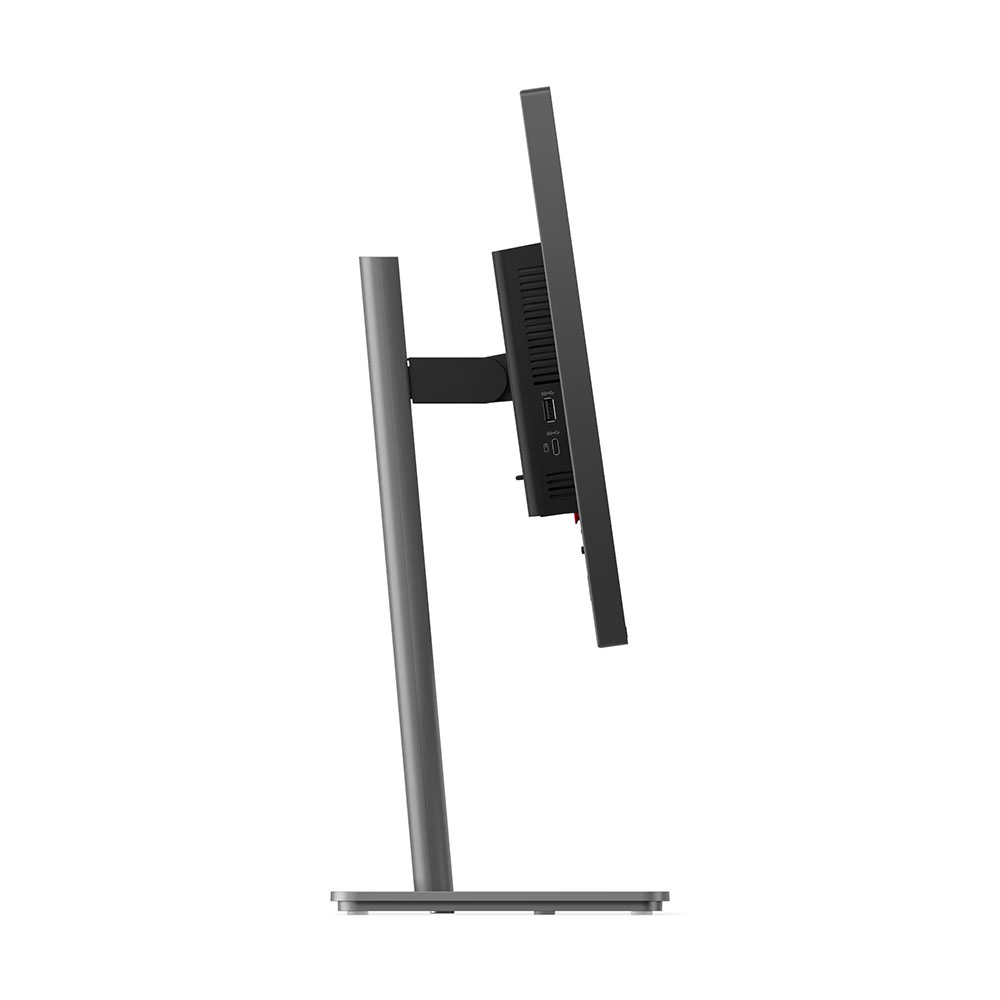

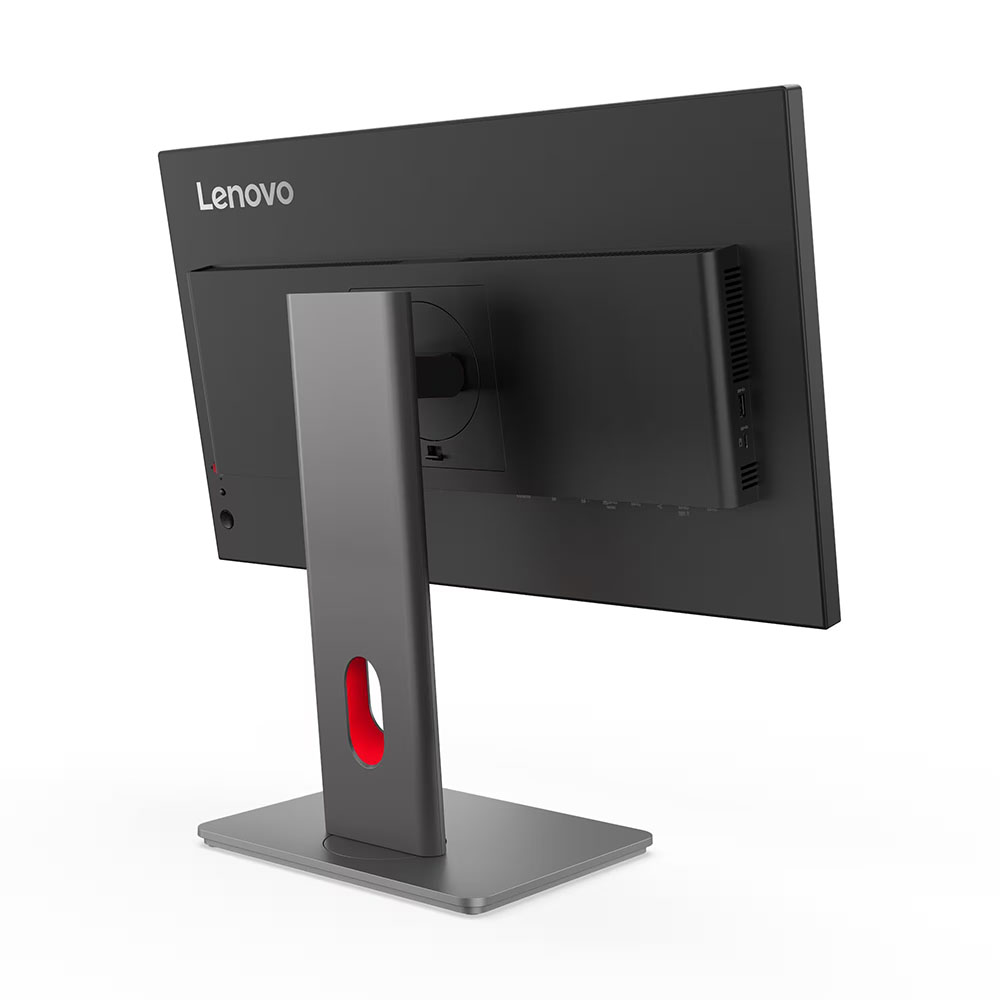

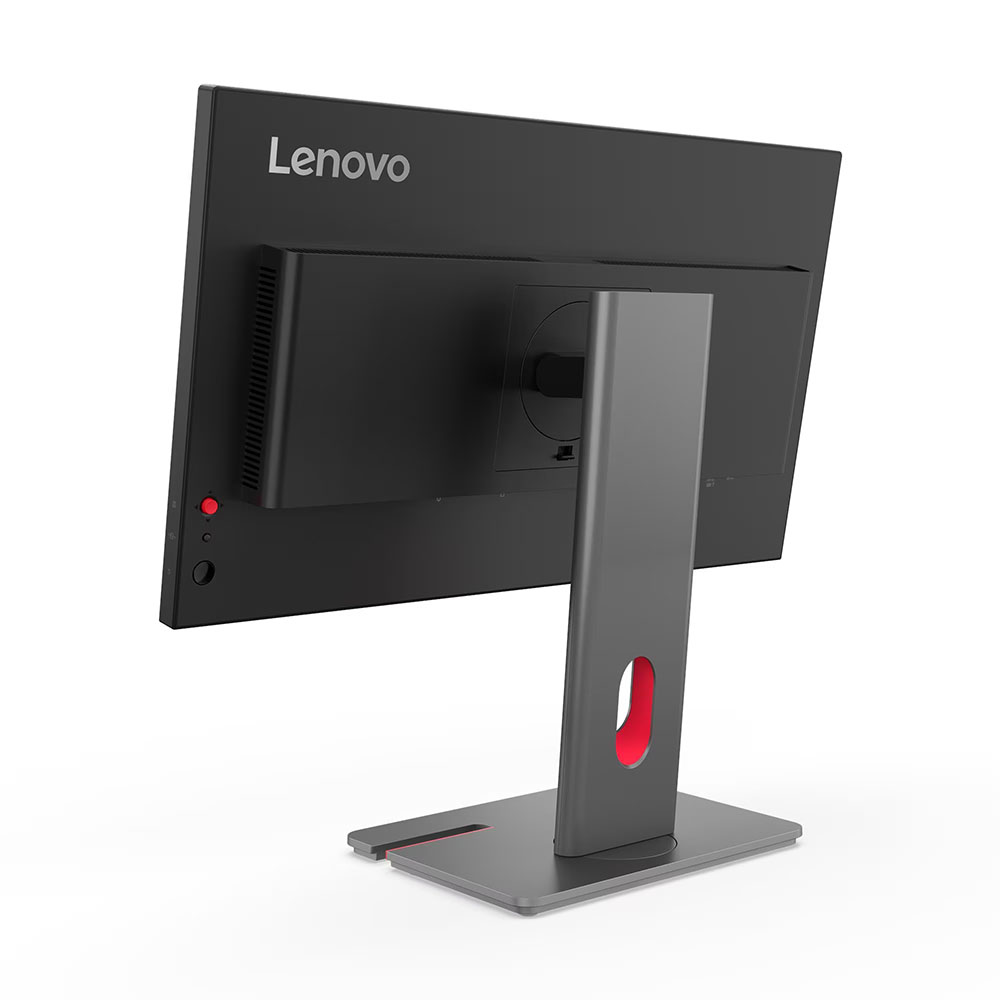

| Stand | Tilt, Swivel, Pivot, Height Adjust Stand |
| Case Color | Eclipse Black |
| Side Bezel Width | 2 mm |
| Mounting | Supports VESA mount 100 x 100 mm |
| ThinkCentre M Series Support | Tiny Support |
| Dimensions (WxDxH) |
|
| Packaging Dimensions (WxDxH) | 730 x 123 x 420 mm (28.74 x 4.84 x 16.54 inches) |
| Weight |
|
| Packaging Weight | 8.4 kg (18.4 lbs) |

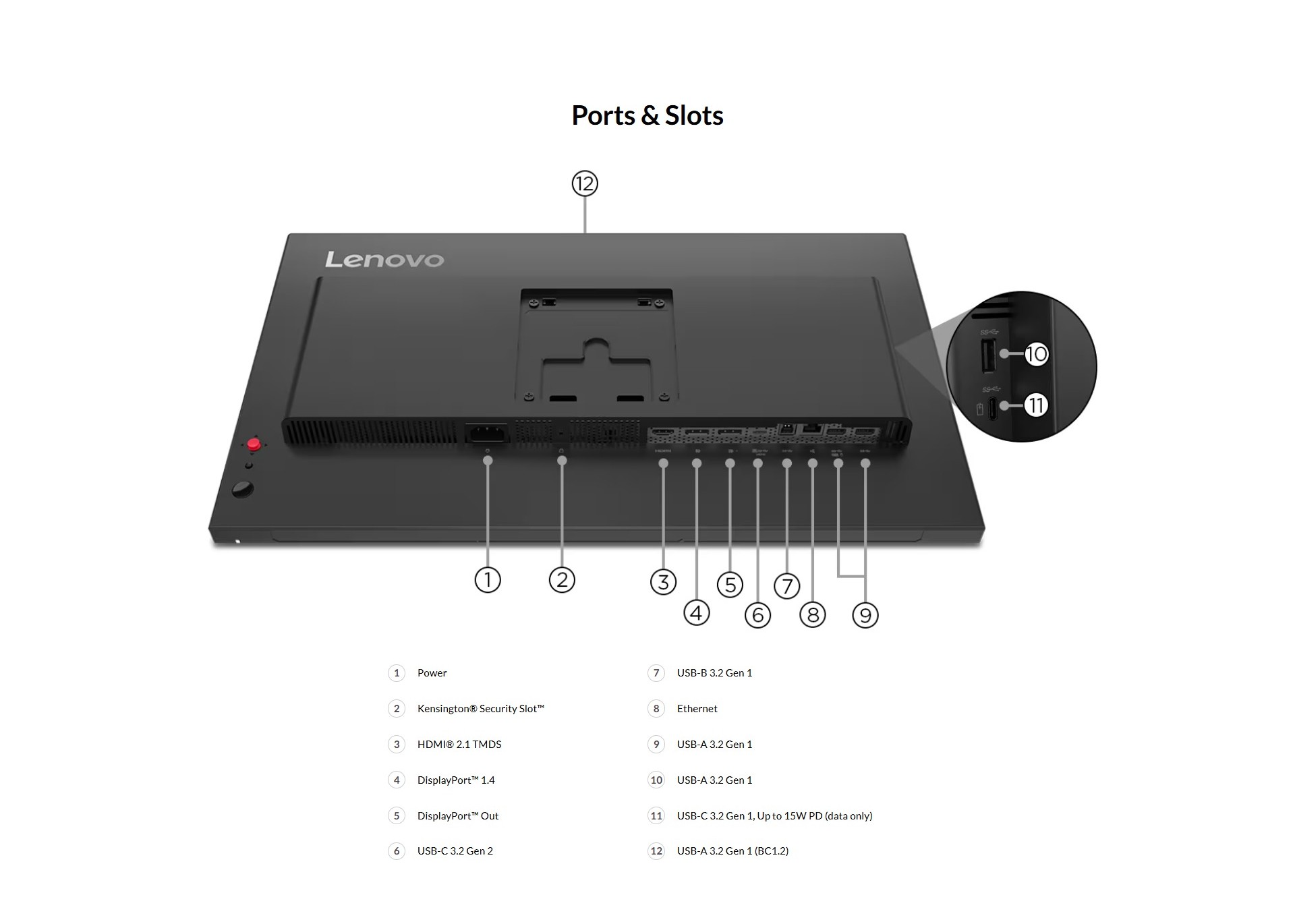

| USB Port | x USB-C® (USB 10Gbps,DP 1.4 Alt Mode HBR3, PD3.1 140W, USB upstream), 1x USB-B (USB 5Gbps, USB upstream), 4x USB-A (USB 5Gbps, 1x BC1.2, USB downstream), 1x USB-C® (USB 5Gbps, 15WPD, USB downstream) |
| Video Connector | 1x HDMI® 2.1 TMDS, 1x DP 1.4 (HBR3), 1x DP 1.4 Out, 1x USB-C® (10Gbps, DP 1.4 Alt Mode HBR3) |
| Network Connectivity | 1x RJ45, Ethernet (10M/100M/1000M) |
| Ergonomic Certification | TÜV Rheinland® Eye Comfort 5 Stars, Eyesafe® Display 2.0, TÜV Low Blue Light (Hardware solution) |
